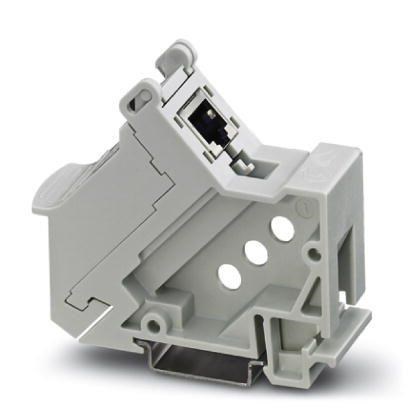

Phoenix Contact 1658118, VS-PP-F-RJ45-CAT6, DIN rail adapter

Phoenix Contact
Phoenix Contact 1658118, VS-PP-F-RJ45-CAT6, DIN rail adapter

Availability:

Lead Time: 30 bus. days

Qty:
FeaturesTech SpecsAccessoryRelated To...

DIN rail adapter, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT6, material: PC-GF, connection method: IDC fast connection, connection cross section: AWG 24- 22, color: gray

Availability:

Lead Time: 30 bus. days

Item ID

PHOENIX 1658118

Manufacturer Part #

1658118

AHC Part #

1968416

Unit Size

1

Brand

Phoenix Contact

Features

  • DIN rail mounting
  • assembly without special tools
  • DIN rail adapter
  • DIN 43880
  • Easy mounting

Tech Specifications

Number of Positions8
Number of slots1
ShieldedYes
Insertion/withdrawal cycles= 750
Connection MethodIDC fast connection
Conductor cross section0.2 mm² ... 0.32 mm²
Connection cross section AWG24 ... 22
External cable diameter4.5 mm ... 8 mm
Colorgray
Mounting typeDIN rail mounting
Insulation resistance= 500 MO
Degree of protectionIP20
No. of cable outlets1
Ambient temperature (operation)-10 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Degree of protectionIP20
Flammability rating according to UL 94V0
Housing materialPC-GF
Contact carrier materialPC
Contact materialCopper alloy
Contact surface materialGold over nickel
Height71 mm
Number of Positions8
Transmission characteristics (category)CAT6
GRP transmission propertiesCAT6
Transmission speed1 Gbps
Frequency range250 MHz
Rated current1 A
Rated voltage (III/3)50 V
Flammability rating according to UL 94V0
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
